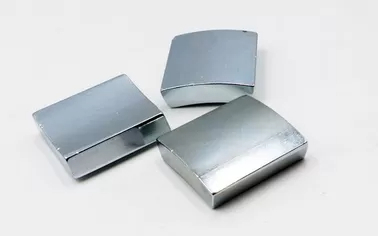

N52 Arc Neodymium Magnets One Side Flat One Side Curved As Motor Rotor For Electricity Supply Overview: N52 arc neodymium magnets are powerful permanent magnets made from an alloy of neodymium, iron, and boron. They are commonly used in various applications, including electric motors, due to their strong magnetic properties.   Design: Shape: These magnets typically have one flat side and one curved side, allowing them to fit snugly into rotor assemblies. Grade: N52 denotes the strength of the magnet, making it one of the strongest commercially available grades. Applications: Electric Motors: Ideal for use in brushless DC motors or stepper motors, where efficient magnetic performance is crucial for energy conversion. Generators: Useful in power generation applications, where rotation in a magnetic field is required to produce electricity. Benefits: High Magnetic Strength: N52 magnets provide a strong magnetic field, improving the efficiency and performance of motors. Compact Size: Their strength-to-weight ratio allows for smaller and lighter designs without sacrificing power. Durability: Neodymium magnets are resistant to demagnetization, ensuring long-term performance in various environments. Considerations: Temperature Sensitivity: N52 magnets can lose their magnetism at high temperatures, so it's essential to consider thermal management in designs. Brittleness: These magnets can be brittle, so care must be taken during handling and installation to avoid chipping or breakage. Conclusion: N52 arc neodymium magnets are an excellent choice for motor rotors in electricity supply applications, providing high strength and efficiency in a compact form factor. When designing systems that utilize these magnets, be mindful of their temperature and handling characteristics to ensure optimal performance.
